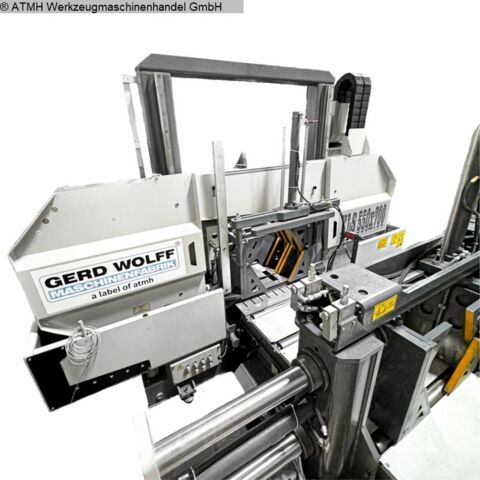

GERD WOLFF - KLS 550 x 700
GERD WOLFF - KLS 550 x 700

GERD WOLFF KLS 550 x 700

Band Saw - Automatic
- BRAND NEW -

Order-No.16098
MakeGERD WOLFF
Built in2022
OriginDeutschland
ConditionNEW
LocationEnnepetal
Delivery Termsimmediately
Quotationex stock, free on truck
Priceupon request
Send inquiry »
cutting diameter
570 mm
saw band length
7250 x 41 mm
cutting width
1,3 mm
capacity 90 degrees: square
550 x 550 mm
capacity 90 degrees: flat
550 x 700 mm
total power requirement
4 kW
weight of the machine ca.
6050 kg
required space
2600 x 1300 x 3700 m

The KLS 550 x 700 is a semi-automatic and column guided
horizontal bandsaw.
Standard specifications

- Swarf Brush
- Hydraulic Blade Guide
- Hydraulic Vice
- Hydraulic Blade Tension
- Blade Breakage Switch
- Stop System
- Automatic Ball Screw Lubrication
- Led Lighting
- Swarf Conveyor
- Swarf Carrying
- 1400 mm Feeding Drive
- Double Roller Table
- Material End Detector
- Program Saving System
- USB Connection Output
- PLC Control & Touch Screen
- Inverter
Optional specifications
- Laser Line
- Lubrication Mist
- V Shape Vice
- Extra Double Roller Table
- Upper Clamp System
- Curve Cutting Detecting Sensor

The pictures are for orientation only and do not represent a true-to-scale
image of the machine.
