GERD WOLFF - KLY 2DT 650
GERD WOLFF - KLY 2DT 650

GERD WOLFF KLY 2DT 650

Bandsaw - Horizontal
- BRAND NEW -

Order-No.16125
MakeGERD WOLFF
ConditionNEW
LocationEnnepetal
Delivery Termsimmediately
QuotationFree on truck from location
Priceupon request
Send inquiry »
cutting diameter
660 mm
saw band length
9000 x 54 mm
cutting width
1,6 mm
Capacity 90° - round
660 mm
Capacity 90° - square
650 x 650 mm
Capacity 90° - rectangle
650 x 1080 mm
Capacity 45° - round
660 mm
Capacity 45° - square
650 x 650 mm
Capacity 45° - rectangle
650 x 670 mm
Capacity 30° - round
410 mm
Capacity 30° - square
410 x 410 mm
Capacity 30° - rectangle
650 x 410 mm
total power requirement
5,5 kW / 2775 Nm
weight of the machine ca.
7100 kg
dimensions of the machine ca.
2500 x 2200 x 4500 mm

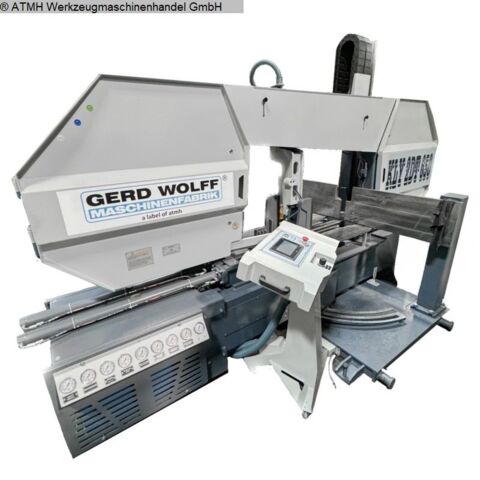

The KSY 2DT 650 is a semi-automatic and column-guided horizontal bandsaw.
The machine also has a driven roller table, which is 2 metres long on the front
has a spray mist has a spray mist cooling system. Equipped with a linear
guided saw blade, the KSY 2DT 650 can perform precise and fast Mitre cuts.

Standard Specifications
- Swarf Brush
- Hydraulic Blade Guide
- Hydraulic Vice
- Hydraulic Blade Tension
- Automatic Angle Rotation
- PLC TouchScreen
- Blade Breakage Switch / Stop System
- Led Lighting
- Swarf Conveyor
- Carrying
- 2 Pieces 2 Meter Roller Table
- USB Connection Output

Optional Specifications
- Motorized system for roller table
- Laser Line
- Lubrication mist
- Extra double roller table
The pictures are for orientation only and do not represent a true-to-scale
image of the machine.
