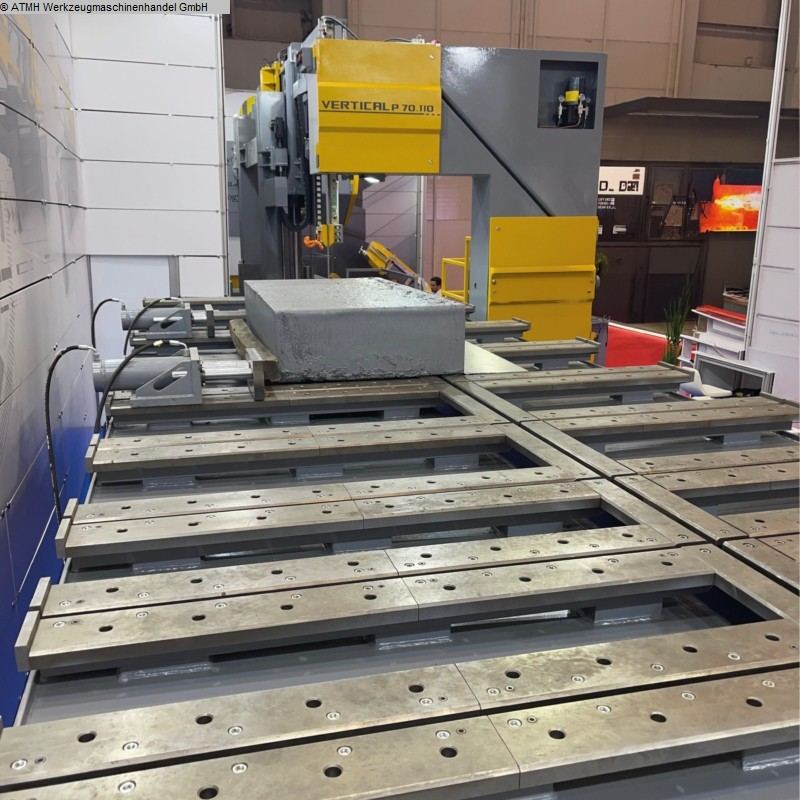

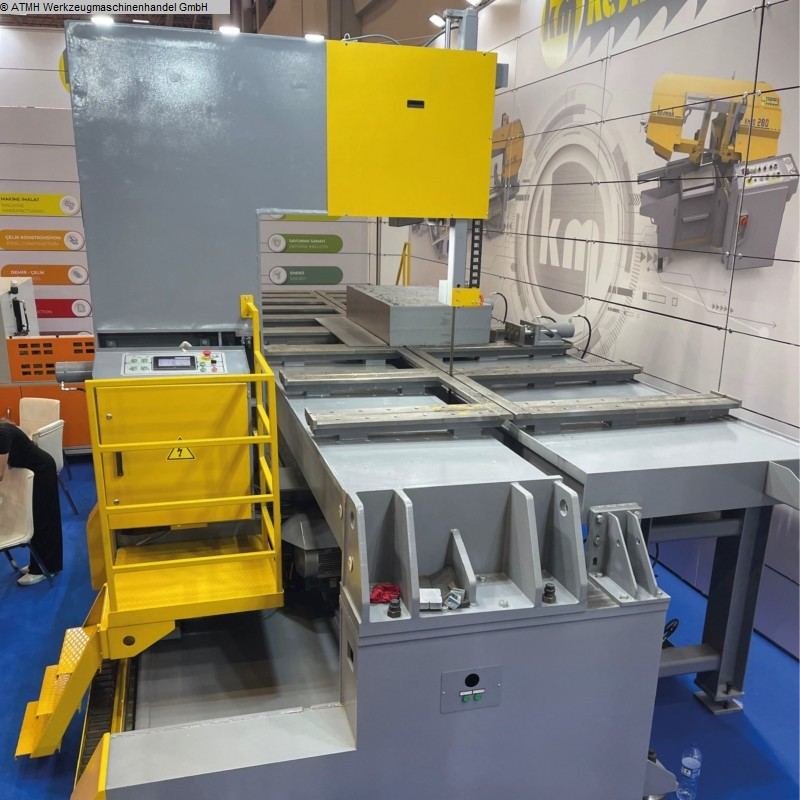

Vertical band saw – Model P70.110
Capacity 90° (mm)
Height: 700 mm
Width: 1100 mm
Length: 6000 mm
Motors
Main motor (saw blade drive): 5.5 kW
Hydraulic motor: 1.5 kW
Coolant pump: 0.25 kW
Feed servo motor: 1.5 kW
Chip conveyor: 1.1 kW
Further technical data
Saw blade size: 7770 × 54 × 1.6 mm
Material feed height: 1440 mm
Hydraulic oil tank capacity: 40 l
Coolant tank capacity: 190 l
Machine dimensions (H × W × L): 4500 × 4000 × 8700 mm
Weight: 20,000 kg

Standard equipment
- Hydraulically driven chip brush
- Speed control device (belt speed adjustable via frequency converter)
- Servo feed system (1–500 mm/min)
- Hydraulic saw blade tensioning
- Saw blade break detection and stop system
- Touchscreen user interface
- Laser line display (laser marking)

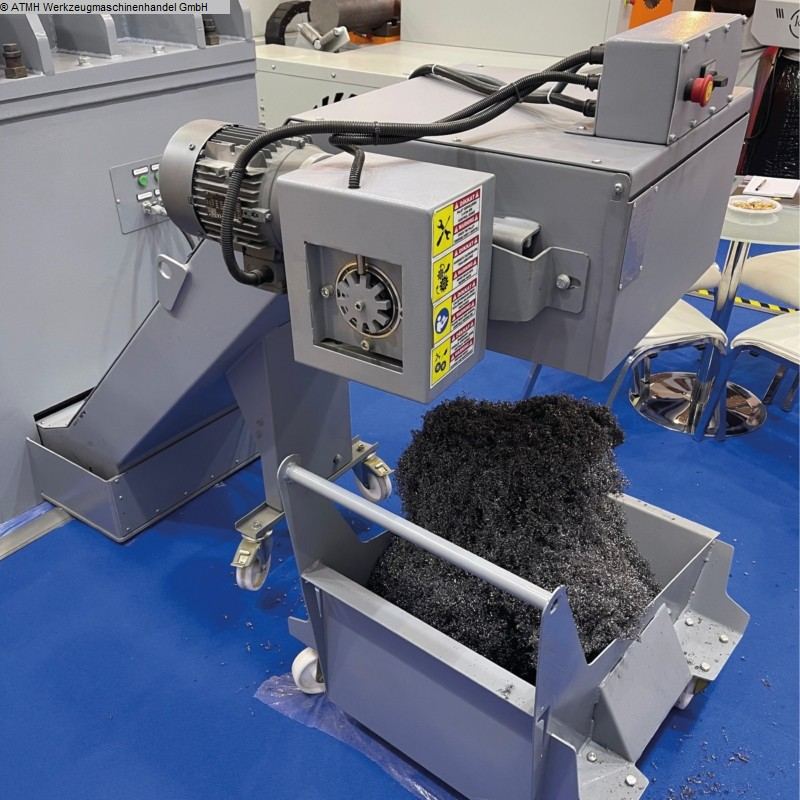

- Scraper-type chip conveyor
- Hydraulically movable arm (automatic)
- Chip trolley / chip container
- Material alignment piston (for aligning the material)

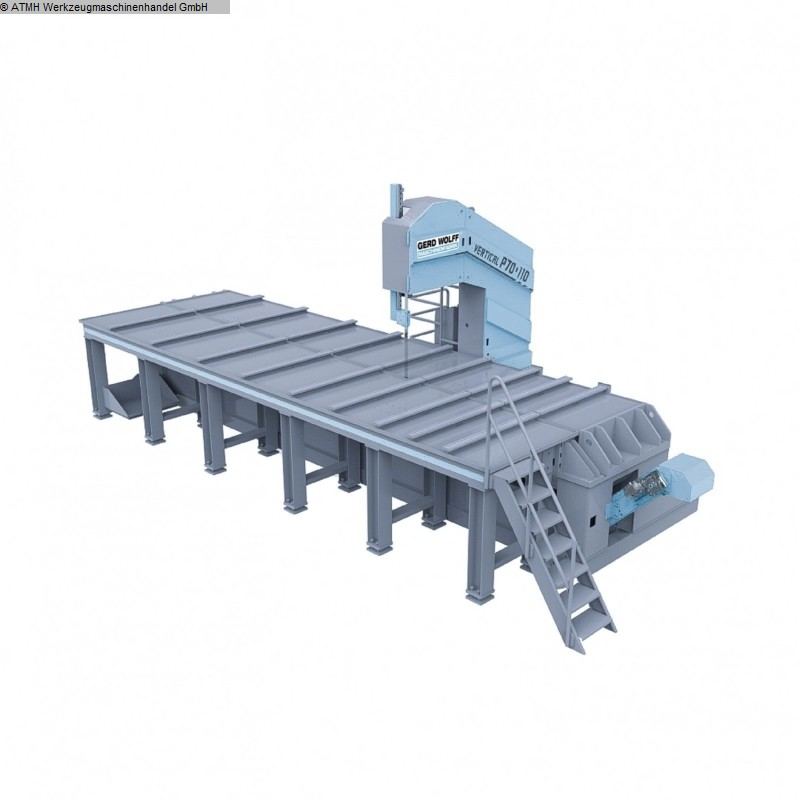

The images are for guidance only and are not a true-to-scale
representation of the machine.
