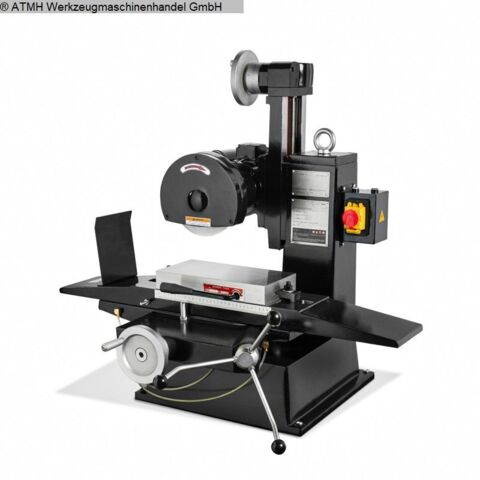

The G115 Surface Grinder is a compact grinding machine designed for processing
the circumference or face of the grinding wheel on the horizontal or vertical
surfaces of a workpiece. Using fixtures or shaped grinding wheels, inclined or
shaped surfaces can also be processed. The machine is ideal for small
businesses, maintenance industries, home workshops, laboratories, teaching
demonstrations, and more.
TECHNICAL DATA
Maximum cutting amount: not greater than 0.03 mm
Maximum linear speed of the grinding wheel: 35 m/s
Table size: 152×304 mm
Maximum grinding height: 210 mm
Longitudinal stroke of the worktable: 340 mm
Transverse travel of the worktable: 170 mm
T-slot of the worktable: 1-12 mm
Outer diameter × inner diameter × thickness of the grinding wheel: 180×32×13 mm
Grinding head motor: 550 W/220 V
Vertical feed handwheel interval: 0.025 mm
Lateral feed handwheel interval: 0.02 mm
Net weight / Gross weight: 210/260 kg
Machine dimensions: 930×780×730 mm
Package size: 1100×760×860 mm

FEATURES
The worktable can be moved back and forth as well as left and right.
The grinding head can be raised and lowered vertically.
High rigidity of the entire machine.
The grinding head runs smoothly.
Compact design with low noise.
The machine is lubricated by a manual oil pump. To lubricate, simply pull out
the handle.

Work cabin is available separately.
If you need any other special accessories to improve work efficiency, please
contact customer service. (Special accessories must be purchased separately.)

PRODUCT INFORMATION:
From the proximal end of the main spindle to 100 mm, the radial runout of the
tapered hole axis is 0.01~0.02 mm.
