GERD WOLFF - 2000 x 2000 x 310mm
GERD WOLFF - 2000 x 2000 x 310mm

GERD WOLFF 2000 x 2000 x 310mm

bolster plate
- BRAND NEW -

Order-No.H1124
MakeGERD WOLFF
ConditionNEW
LocationEnnepetal - Hall 3
Delivery Termsimmediately
QuotationFrom stock - free on truck
Priceupon request
Send inquiry »
plate width
2000 mm
plate depth
2000 mm
plate height
310 mm
weight
2930 kg
dimensions of the machine ca.
2000 x 2000 x 300 mm

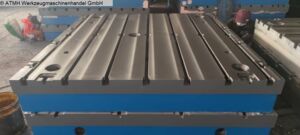

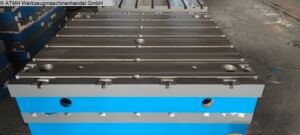

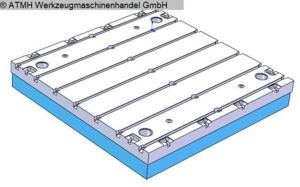

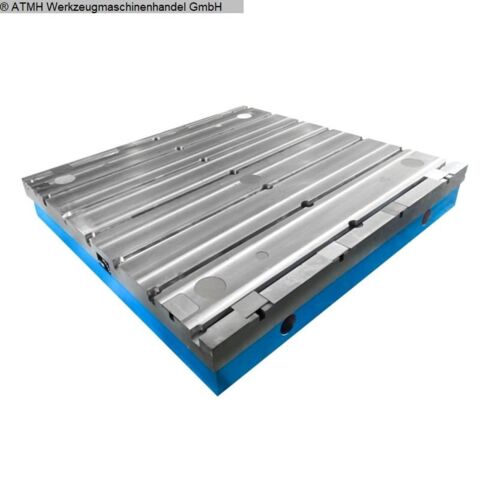

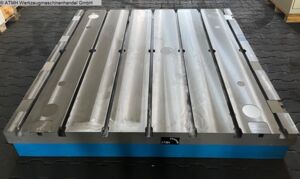

Clamping plate 2000 x 2000 x 310 mm
If you have not found the size you require, you can also send us
send us an e-mail with the completed PDF form. With this we can
have a customised panel made for you.

Number of grooves: 7
Edge distance: 100 mm
Groove spacing: 300 mm
Groove size: 28 x 52 mm
Casting quality HT250
Flatness less than 0.12 mm.
Surface machined according to DIN 876/III

2x in stock
If you have not found the size you require, you can also send us
send us an e-mail with the completed PDF form. With this we can
have a customised panel made for you.

Number of grooves: 7
Edge distance: 100 mm
Groove spacing: 300 mm
Groove size: 28 x 52 mm
Casting quality HT250
Flatness less than 0.12 mm.
Surface machined according to DIN 876/III

2x in stock
