GERD WOLFF 4000 x 1500 x 310mm
bolster plate
- BRAND NEW -
| Order-No. | H1125 |
| Make | GERD WOLFF |
| Condition | NEW |
| Location | Ennepetal - Hall 3 |
| Delivery Terms | immediately |
| Quotation | From stock - free on truck |
| Price | upon request |
| plate width |
|---|
| 4000 mm |
| plate depth |
|---|
| 1500 mm |
| plate height |
|---|
| 310 mm |
| weight |
|---|
| 4930 kg |
| dimensions of the machine ca. |
|---|
| 4000 x 1500 x 310 mm |

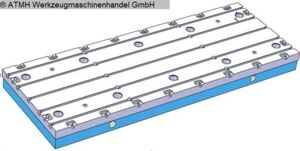

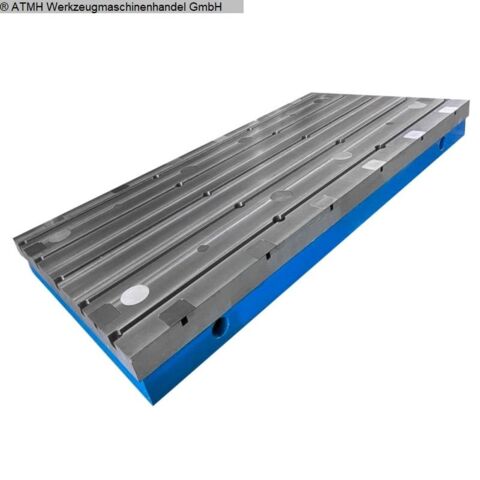

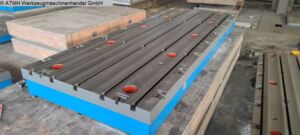

GERD WOLFF clamping plate 4000 x 1500 x 310 mm
If you cannot find the size you need, you can also send us an e-mail
with the completed PDF form (attached). This way, we can
manufacture a clamping plate according to your requirements.
T-slot size: 52 x 28
T-slot spacing: 300
Number of slots: 5
Edge distance: 150
Weight: 4930 kg
Casting quality HT250
Flatness less than 0.12 mm
Surface treatment according to DIN 876 / III
