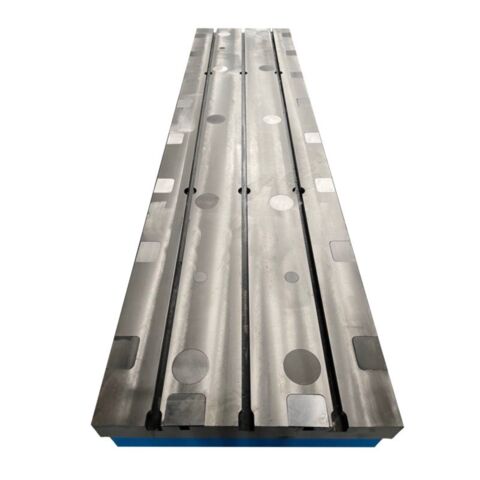

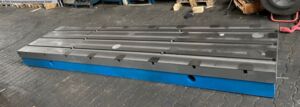

GERD WOLFF 4000 x 1000 x 300mm
bolster plate
- BRAND NEW -
| Order-No. | H1127 |
| Make | GERD WOLFF |
| Condition | NEW |
| Location | Ennepetal - Hall 3 |
| Delivery Terms | immediately |
| Quotation | From stock - free on truck |
| Price | upon request |
| plate width |
|---|
| 4000 mm |
| plate depth |
|---|
| 1000 mm |
| plate height |
|---|
| 300 mm |
| weight |
|---|
| 3500 kg |
| dimensions of the machine ca. |
|---|
| 4000 x 1000 x 300 mm |
Clamping plates – T-slot plates – plate field
4000 x 1000 x 300 mm
If you have not found the size you require, you can also send us
an e-mail with the completed PDF form. With this, we can
have a plate manufactured for you individually.
Number of slots: 3
Edge distance: 200 mm
Slot distance: 300 mm
Slot width: 28 x 52 mm
Casting quality HT 250
Flatness less than 0.12 mm
Surface finish according to DIN 876/III
