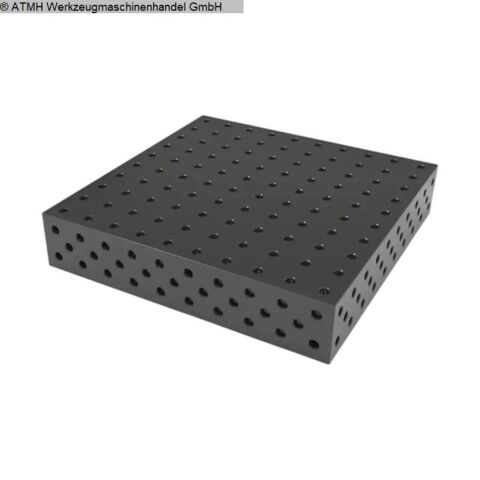

Manufacturer: GERD WOLFF
Website: www.gerdwolff.com
Technical Details:
• Length 1000 mm
• Width 1000 mm
• Height 200 mm
• Weight 300 kg
• Hole diameter 28 mm
• Hole spacing 100 mm
• Plate thickness: 25mm
Advantages and Features:
• 3-day gas nitriding process
• Increased corrosion resistance
• Weld spatter adhesion protection
• Maximum load capacity
• Enhanced fatigue strength
• Improved vibration resistance
• Fine scale engraving
• Reinforcement with welded seams and ribs on the underside
• Optimal working height of 820-865 mm
• 4 height-adjustable support legs
• Available with a matching accessory set (optional)
Our welding tables are manufactured using HT 300 cast iron and are nitrided as
a whole after mechanical processing. Furthermore, they feature precise fine
scale engraving using laser technology.
To ensure adequate stability, our welding tables are reinforced with welded
seams and ribs on the underside (see illustrations). Additionally, they undergo
a 3-day gas nitriding process, enhancing their corrosion resistance, fatigue
strength, and vibration resistance, among other factors.
All our tables come with adjustable legs. The minimum height adjustment range
is 620 mm, while the maximum is 665 mm, allowing for a variable working height
of 820 to 865 mm.
Additional available dimensions:
• 1000 x 1000 x 200
• 2000 x 1000 x 200
• 1200 x 1200 x 200
• 1500 x 1000 x 200
• 1500 x 1500 x 200
• 1500 x 2000 x 200
• 2000 x 3000 x 200
• 3000 x 1500 x 200
• 3000 x 2000 x 200
• 4000 x 2000 x 200
• 2400 x 1200 x 200

Please note that the images are not to scale and are for illustrative purposes
only. Our welding tables are produced for our distribution brand "GERD WOLFF
Maschinenfabrik" by a reputable manufacturer.
3D Welding Table - 3D Clamping Fixtures - 3D Precision Welding Table
