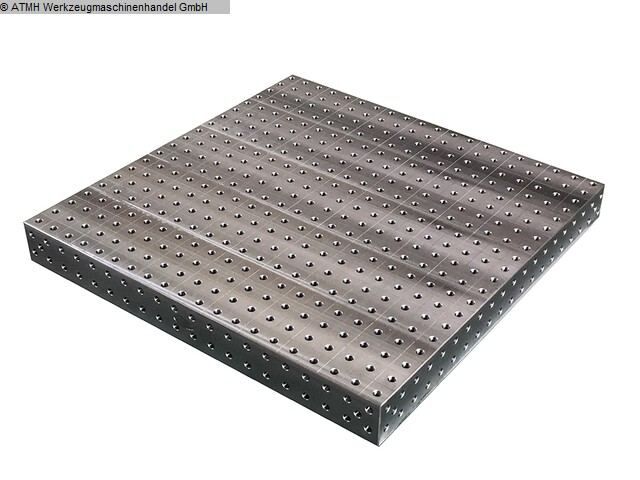

Manufacturer: GERD WOLFF Maschinenfabrik®
Dimensions and Weight
• Length: 1000 mm
• Width: 1000 mm
• Height: 200 mm
• Weight: 300 kg

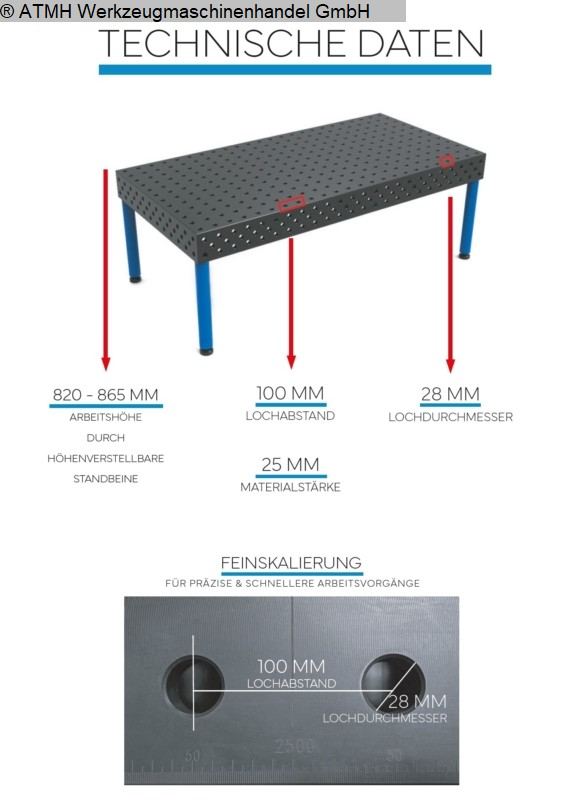

Technical Specifications
• Material: Welded Q355 steel plate
• Plate thickness: 25 mm
• Hole diameter: Ø 28 mm
• Hole spacing: 100 mm straight grid (90° grid)
• Engraved grid lines with 100 mm spacing

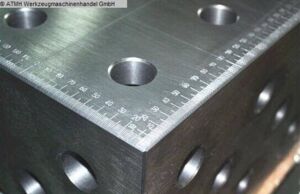

• Laser-engraved precision scale
• Reinforced underside with weld seams and ribs

Table Legs
• 4 height-adjustable table legs
• Working height: 820–865 mm
• Leg adjustment range: 620–665 mm
• Load capacity per leg: approx. 1,500 kg
Accessories
• Optional 40-piece accessory set including various stops, stop and clamping squares, clamps, prism clamping bolts and more
