GERD WOLFF HP 20 - Horizontal

Straightening- and Bending Machine
- BRAND NEW -

Order-No.T1101
MakeGERD WOLFF
Built in2023
Control NameNC
OriginTürkiye
ConditionNEW
Delivery TermsAccording to the arrangement
QuotationFree on truck from location
Priceupon request
pressure
20 t
stroke max.
200 mm
bending capacity max. - flat
200 x 10 mm
working feed
10 mm/sec
Control
NC
Height of Toolings
150 mm
total power requirement
2,2 kW
weight of the machine ca.
640 kg
required space
600 x 1100 x 1220 mm

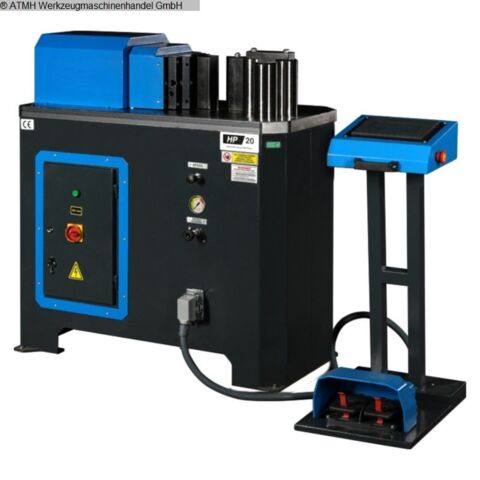

The Gerd Wolff HP 20 is a hydraulic horizontal press machine with many
many possible combinations.

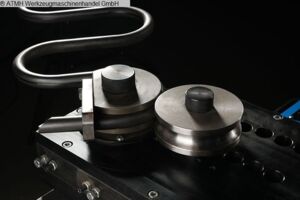

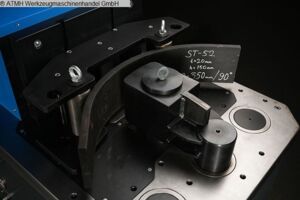

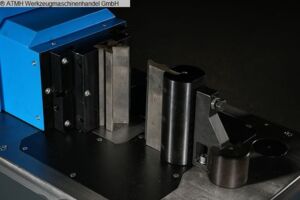

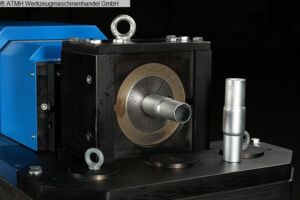

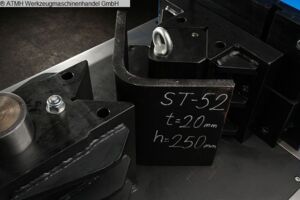

Whether it is the bending of tubes, the punching of profiles or the cutting of
sheet metal - with the right accessories, the HP 20 is a multifunctional
machine among the presses.

Standard accessories
- ergonomic tool clamping table
- easy tool change
- hydraulic speed and pressure adjustment
- easily adjustable back gauge
- induction hardened support pins
- NC control

Highlights
- control panel with digital display
- Easy tool change
- hardened support pins
- hydraulic speed regulation
The HP 20 is manufactured for our sales brand "GERD WOLLF Maschinenfabrik",
by a renowned manufacturer from Türkiye.
