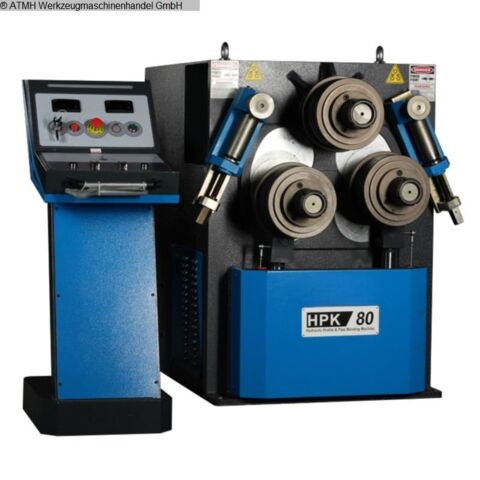

The Gerd Wolff HPK-80 is a hydraulic profile and tube bending machine with 3
rollers. The machine is ideal for bending profiles, tubes and similar material.
Model: HPK 80
Upper shaft diameter: Ø 80 mm
Bottom shaft diameter: Ø 70 mm
Roll diameter: Ø 245 mm
Working speed: 7 m/min
Motor power: 4.75 kW / 380 V
Dimensions (L x W x H): 1500 x 1000 x 1400 mm
Weight: 1645 kg

Standard accessories
Steel construction welded frame
3 Rolls are powered
Hardened and ground shafts made of high tensile special steel
Rolls are hardened and ground
Horizontal and vertical working position
Hardened standard rolls
Mobile control panel
3 Axis mechanical lateral angle guide rolls
Brake motor equipped for the precision bending
Digital Read-Outs (2pcs)

Optional Equipments
Pipe, tube and profile bending rolls
Hydraulic lateral guide rolls (2 axis)
Automation with NC control
