GERD WOLFF - AC 550
GERD WOLFF - AC 550

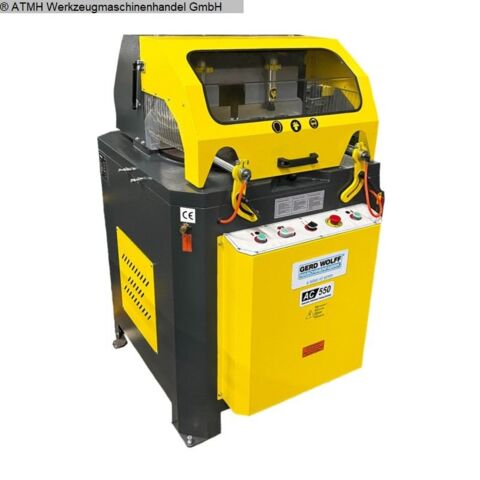

GERD WOLFF AC 550

Circular Sawing Machine - Automatic
- BRAND NEW -

Order-No.T1114
MakeGERD WOLFF
Control NameNC
OriginTürkiye
ConditionNEW
LocationEnnepetal - Hall 3
Delivery Termsavailable immediately
QuotationFrom stock - free on truck
Priceupon request
saw blade diameter
550 mm
Number of revolutions
3580 r.p.m
hole of sawblade
32 mm
Control
NC
total power requirement
3 kW
weight of the machine ca.
250 kg
required space
980 x 1130 x 1430 mm

The Gerd Wolff AC 550 is an automatic aluminium cutting machine which is
manufactured for our sales brand "GERD WOLLF Maschinenfabrik" by a renowned
manufacturer from Türkiye.
Schnittbereich 90° rund: 155 mm
Schnittbereich 90° quadratisch: 155 x 155 mm
Schnittbereich 90° rechteckig: 260 x 200 mm
Schnittbereich 45° rund: 130 mm
Schnittbereich 45° quadratisch: 130 x 130 mm
Schnittbereich 45° rechteckig: 180 x 200 mm

Standard Accessories
- Location points for 15° – 22.5° – 30° – 45° – 67.5°
- Fixing handle for locking at intermediate angles
- Adjustable cutting speed for different types of profile
- Saw covering with safety switch
- Belt propulsion saw
- Two hand safety operation
- Easy to change saw blade
- 2 x Pneumatic vertical piston with clamps
- 1 x compressed air gun

Optional Equipment
- Hydrocheck – Hydraulic speed adjustment for aluminium profiles
- Cooling system for aluminium cutting
- Auxiliary conveyor with rulers
