GERD WOLFF HPK-65 Rohrbiegemaschine
Profile-Bending Machine
- BRAND NEW -
| Order-No. | TT108 |
| Make | GERD WOLFF |
| Condition | New |
| Location | Ennepetal - Hall 1 |
| Delivery Terms | immediately |
| Quotation | Free on truck from location |
| weight of the machine ca. |
|---|
| 1000 kg |
| required space |
|---|
| 1200 850 x 1200 mm |

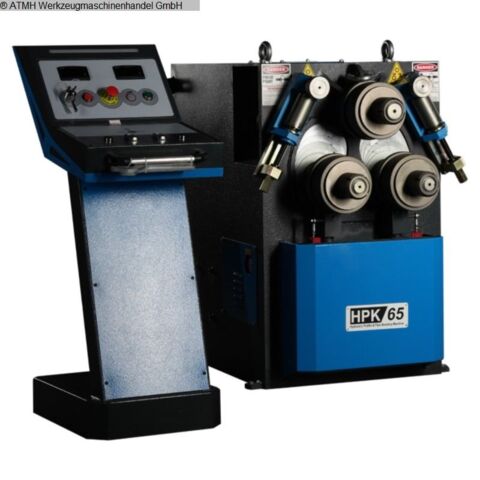

The Gerd Wolff HPK-80 is a hydraulic profile and tube bending machine with 3
rollers. The machine is ideal for bending profiles, tubes and similar material.
Model: HPK 65
Upper shaft diameter: Ø 60 mm
Bottom shaft diameter: Ø 50 mm
Roll diameter: Ø 180 mm
Working speed: 6 m/min
Motor power: 3.75 kW / 380 V
Dimensions (L x W x H): 1200 x 850 x 1200 mm
Weight: 1000 kg
Standard Accessories:
Steel construction welded frame
3 rolls are powered
Hardened and ground shafts made of high tensile special steel
Horizontal and vertical working position
Hardened standard rolls

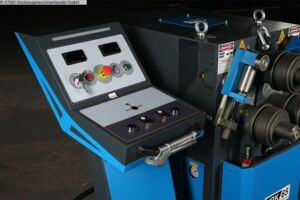

Mobile control panel
3-axis mechanical lateral angle guide rolls
Brake motor equipped for precision bending
Digital read-outs (2 pcs)
Optional Equipment:
NC control
Hydraulic lateral guide rollers (2-axis)
Spiral bending crane
Special profile rolls
