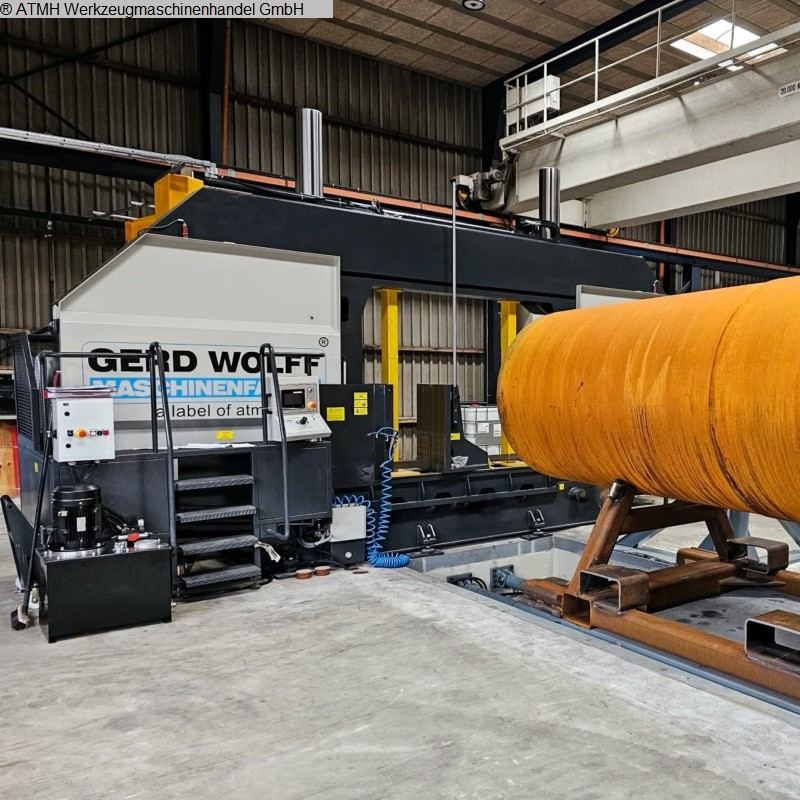

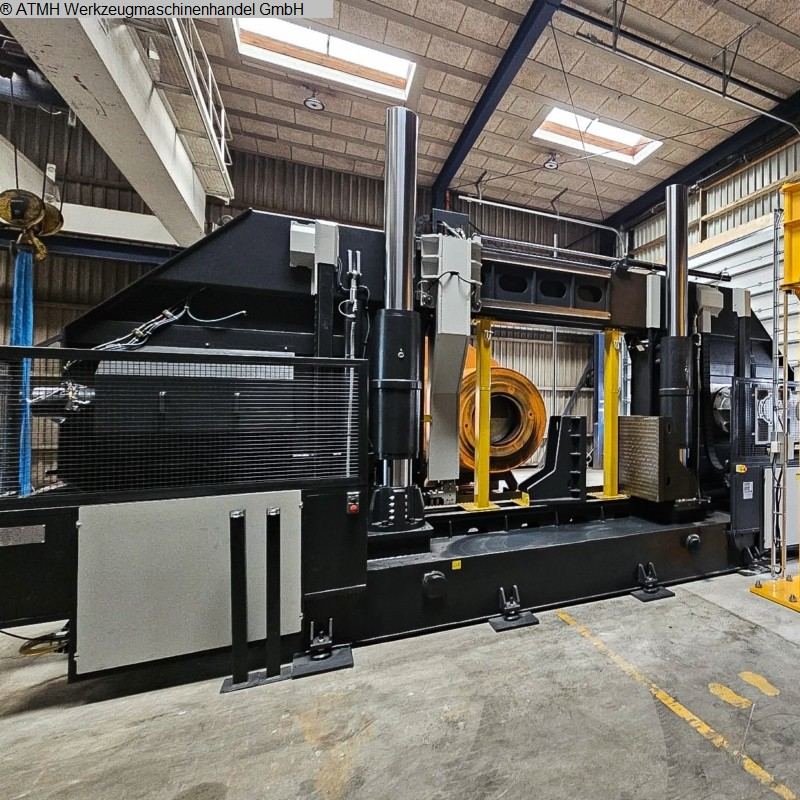

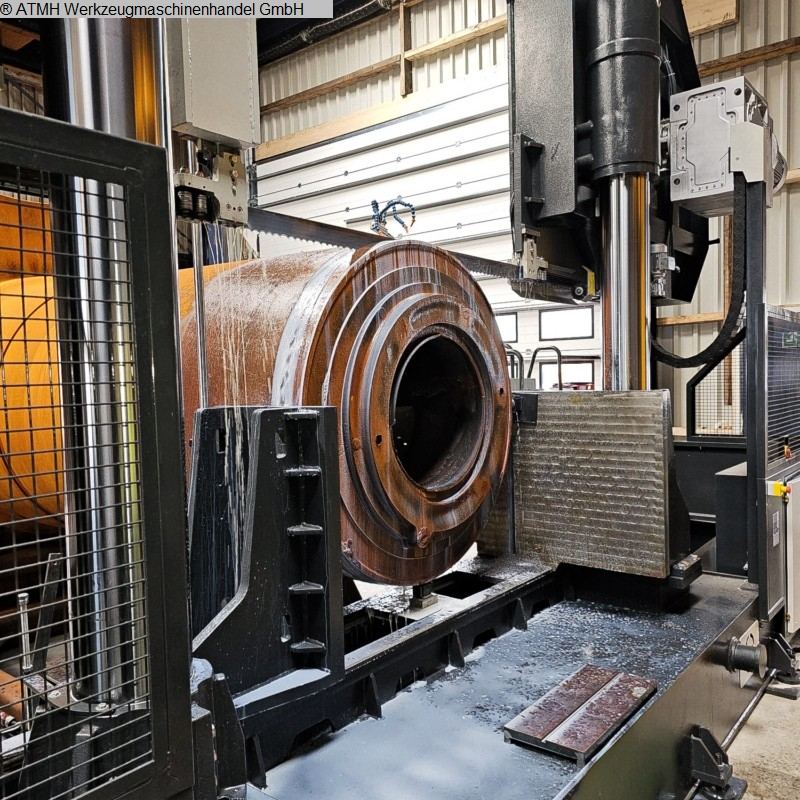

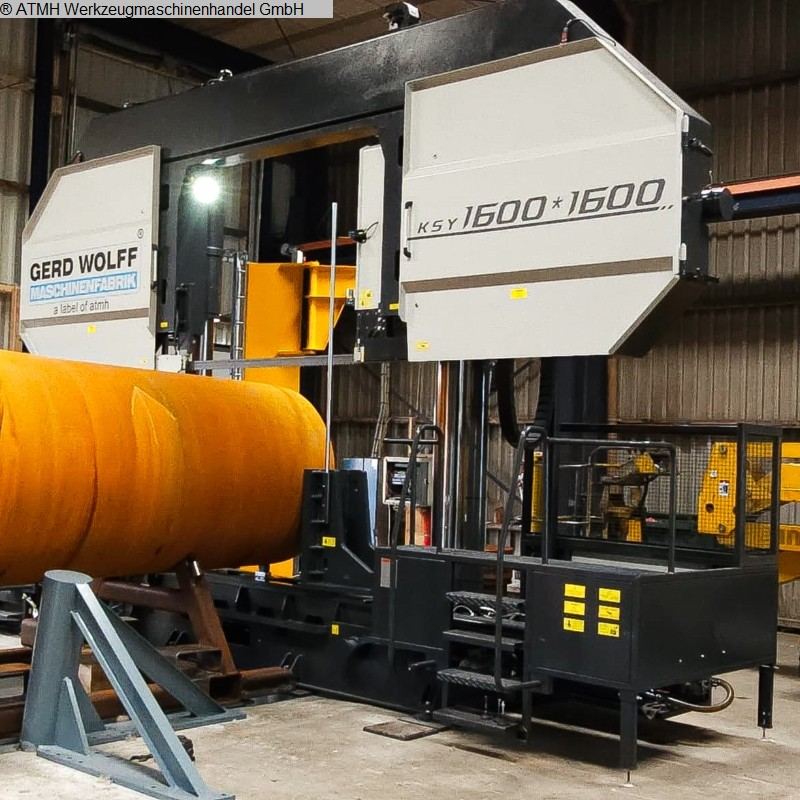

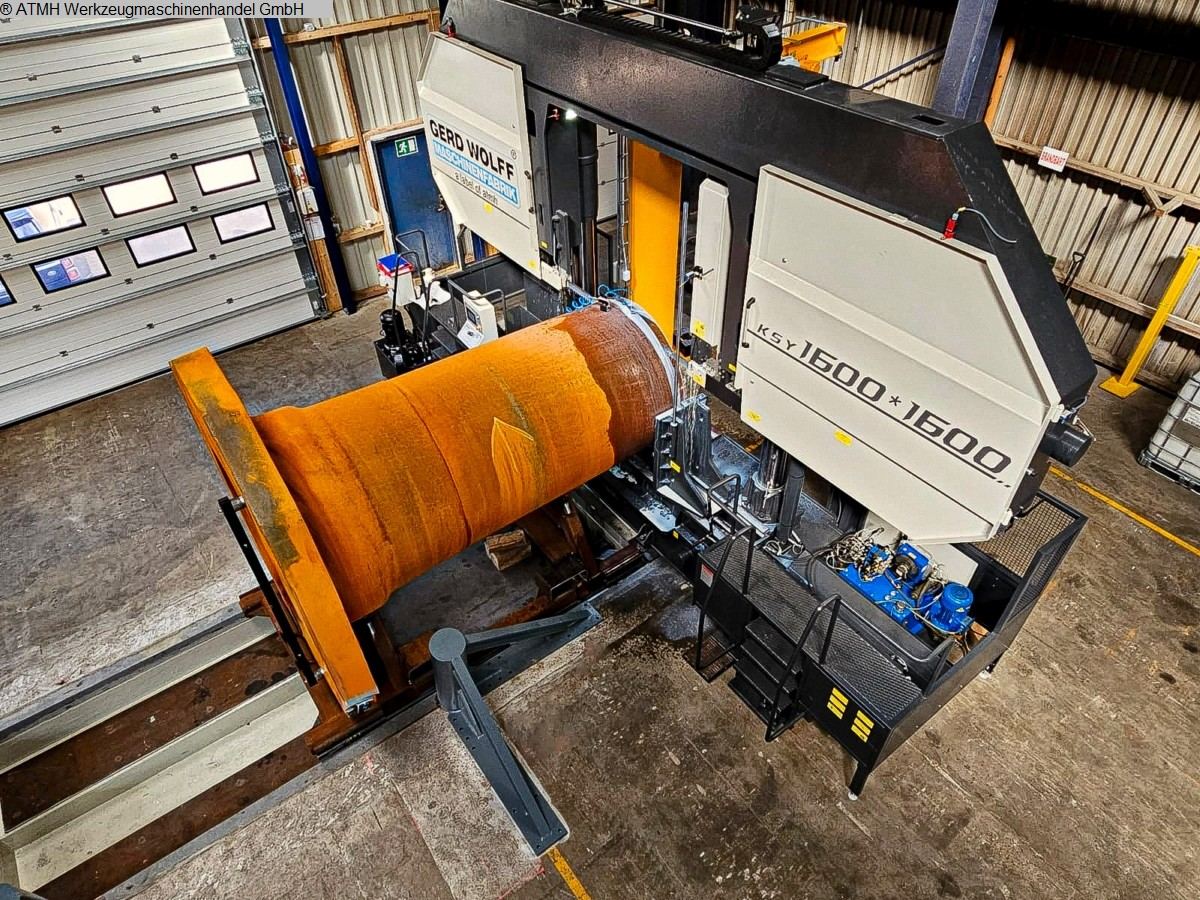

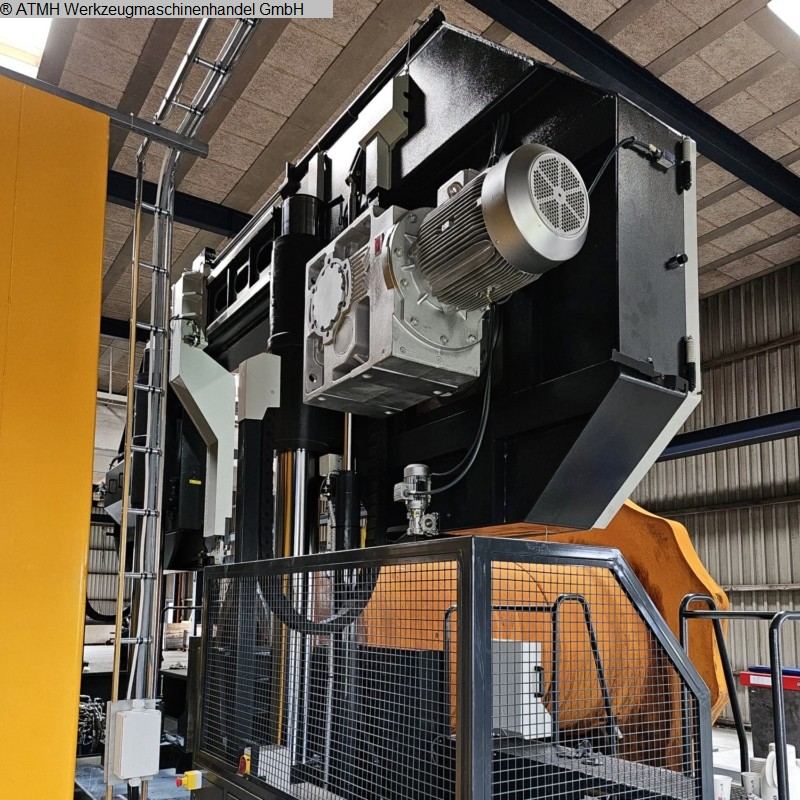

Custom-made: KSY 1600 × 1600 horizontal band saw

Technical specifications:
- Max. cutting diameter: 1,600 mm
- Saw blade length: 14,000 mm
- Cutting width: 1,600 mm
- Machine weight: approx. 20 t
- Installation dimensions (L × W × H): 4,020 × 2,220 × 7,600 mm
Delivery time: approx. 5 months
Customised adaptations in terms of dimensions and design are possible by arrangement.

Optional equipment:
- Clamping devices (choose from conventional, semi-automated or fully automated)
- Motorised roller table system
- Laser cutting line display
- Additional double roller table
- PLC control with operating screen
- Vibration damping system
