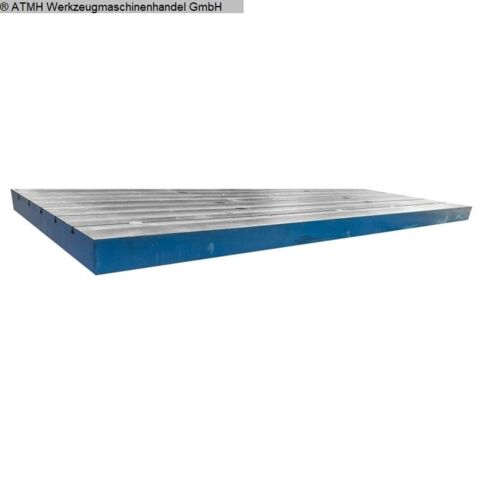

GERD WOLFF 4000 x 2000x 150mm
bolster plate
- BRAND NEW -
| Order-No. | S3661 |
| Make | GERD WOLFF |
| Origin | Holland |
| Condition | NEW |
| Location | Ennepetal - Hall 3 |
| Delivery Terms | available immediately |
| Quotation | From stock - free on truck |
| Price | upon request |
| plate width |
|---|
| 2000 mm |
| plate depth |
|---|
| 4000 mm |
| plate height |
|---|
| 150 mm |
| weight |
|---|
| 3900 kg |
Clamping plates - T-slot plates - plate field
4000 x 2000 x 150 mm
If you have not found the size you are looking for, you can also
send us an e-mail with the completed PDF form. With this we can
a custom made panel for you.
Number of grooves: 7
edge distance: 240mm
groove spacing: 230mm
Groove size: 22mm
Casting quality HT250
Flatness less than 0.12 mm
Surface machined according to DIN 876/III

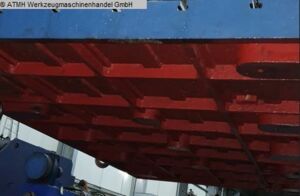

The cover picture is for orientation only and does not represent a true-to-
scale image of the plate.
